Product Features

1. Replace manual dispensing operations and realize mechanized production.

2. The high-precision three-axis platform is driven by precision screw + Japanese servo motor to ensure the accuracy and stability of the equipment.

3. The original new vision technology adopts the new vision system technology to ensure the accuracy of the dispensing process.

4. Dedicated operating software, supporting the new vision system, developed a dedicated dispensing vision software to simplify dispensing.

5. Ultra-high cost performance, the industry's lowest cost vision system, with the lowest cost to achieve intelligent dispensing.

6. Smart and simple operation interface of the tablet computer.

7. Program files can be uploaded/downloaded via U disk, which is convenient for data management and storage.

8. Running in a silent state, it will not cause noise pollution to the production site.

9. It can be applied to products that need to be glued in various industries.

Application industry:

 Underfill mobile phone, tablet, digital automobile industry battery assembly speaker dispensing



FPC soft board, hardware accessories, chip bonding, semiconductor packaging, LCD assembly, dispensing

PCB board dispensing, semiconductor microelectronics assembly, camera module (Lens petal fixing, VCM dispensing, etc.)

Specification

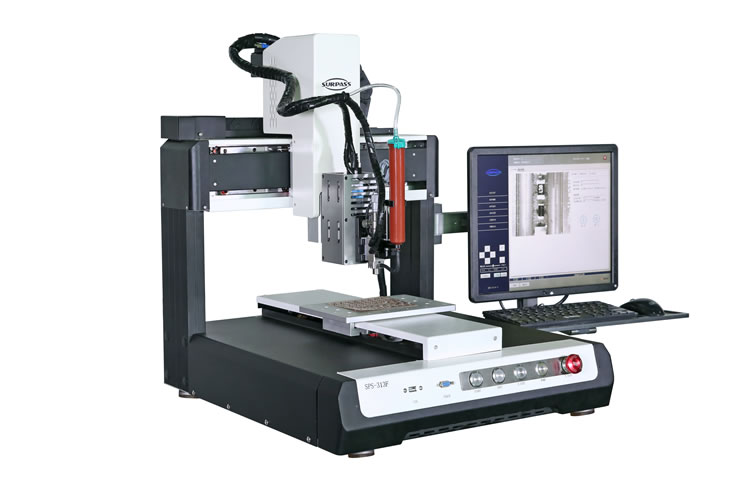

SPS series robot

Working range (mm)

SPS-313F: 300*300*100

Repeatability (mm)

±0.01

Maximum speed (mm/s)

X:800 Y:800 Z:500

I/0 signal

12 In puts/12 Out puts

Moving speed mm/sec

0.1-800/250

Drive method

Japan precision servo motor

transfer method

Precision screw + precision linear guide

Dimensions (mm)

SPS-313F: 580*545*650

Z axis load

5kg

Workbench load

15kg

Programmatically

Notebook + teaching device

Program record capacity

1000 groups, 4000 points per group (support U disk COPY)

Visual positioning system

Daheng Industrial CCD Visual Positioning System + Lenovo Notebook

Decomposing ability

0.01mm/Axis

Recognition range

7.1*5.3mm (determined by the selected lens)

light source

LED light source

Motion compensation function

3 axis (any route in 3D space)

Input power

AC/220V/350W

Working temperature

5-40°C

Working environment humidity

20-90%no condensation

Sport mode

Point to point, continuous line segment, arc circle

heating equipment

0-130℃

【product manual】

SPS-PS300 is a non-contact jet dispensing valve, which can be widely used in the controllable flow of various adhesives such as surface mount adhesive, conductive silver paste, IC packaging adhesive, underfill, sealant, surface coating adhesive, etc. , High-speed dispensing operation. It can not only be injected into a narrow space as small as a hundred microns, but also can be used to complete precise dispensing with a weight of 0.01 milligrams at a specified location.

【Features and Advantages】

☆High speed

There is no need for Z-axis movement necessary for traditional needle dispensing technology, and the dispensing speed is more than 3 times that of needle dispensing.

☆High precision

The minimum dispensing volume can reach 5 nanoliters, the smallest dot diameter can be controlled to 0.2mm, and it has a consistency that traditional needle dispensing cannot match.

☆High flexibility

The SPS-PS300 is insensitive to the dispensing height, which can avoid defects caused by the needle colliding with the workpiece; the extremely small dispensing volume allows the SPS-PS300 to work in a more compact space and complete the dispensing process that cannot be achieved with needle dispensing.

☆Low maintenance and long life

The advanced structure design makes daily cleaning and maintenance simple and easy. The most advanced nano wear-resistant material accessories are more than 20 times longer than the life of ordinary materials.

【Product Specifications】

Model SPS-PS300

Dimensions 81.16 length×24.18 width×151.85 height mm

Weight 270 grams (9.5 ounces)

Feeding component: stainless steel connector to needle cylinder (standard configuration)

          Inverted plug connection pipe (optional)

Can be connected to the syringe specifications: 3cc, 5cc, 10cc, 30cc, 55cc

Can receive material pipe specifications: 4 in charge, 6 in charge

Firing pin assembly: special high-strength material 303

Nozzle assembly: special high-strength material

Gas seal: polyurethane

Other O-rings: Nitrile rubber

Heating block: 6061 AL anodized (optional)

Heating tube: 24V (DC) 50W (optional)

Maximum heating temperature: 80℃

Maximum operating frequency 150Hz

Pulse time 2ms

Input voltage 24VDC

Power consumption 0.5Amp (peak value 5.0Amp)

Operating air pressure 2-6 bar (29-87psi)

The highest heating temperature of the valve is 90℃ (194℉)

Maximum operating temperature 40℃ (104℉)

Maximum fluid pressure 6.8bar (100psi)

Glue dot size 3—200nl (1—6.8oz)

Viscosity range 20-20000 Cps

Material in contact with fluid: 17-4PH stainless steel

303 stainless steel

Tungsten carbide
