【product manual】

1. It can replace manual specific dispensing operations and realize mechanized production.

2. The operation is simple and convenient, and the work is high-speed and precise.

3. The compiled program files can be uploaded/downloaded via U disk, which is convenient for data management and storage.

4. There is a control button for the needle on the machine, no need to connect an external teaching pendant, which is more convenient for debugging than similar products.

5. The teaching box adopts LCD 5-inch color screen display.

6. When the machine is running, the working sound is small and will not cause noise pollution to the production site.

7. 3D dispensing system can be realized, no matter any complicated dispensing shape and path can be accurately completed

to make.

8. Optional single-tube or multi-tube dispensing can improve work efficiency when different glue or dispensing paths are realized.

9. Applicable to all kinds of dispensing industries, such as: common UV glue, silica gel, silicon, red glue, COB black glue, conductive glue, solder paste, etc., all of which can be used on D series equipment.

【Product Specifications】

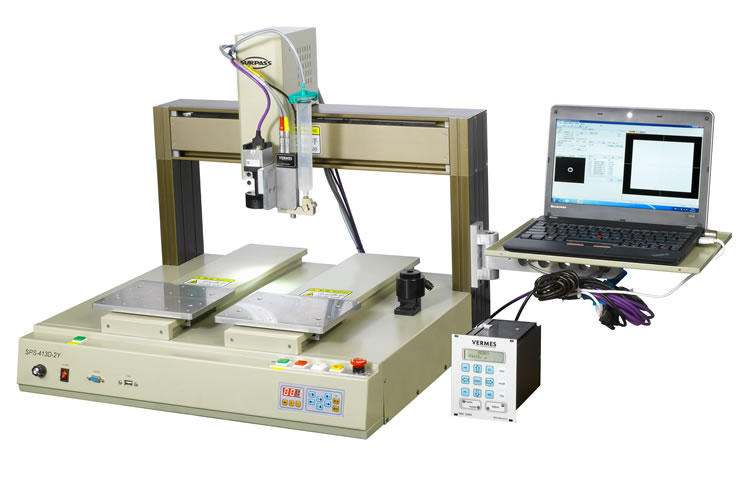

Model: SPS-513L-2Y

X/Y1//Y2/Z Stroke: 400/300//300/100mm Table maximum load: 10kg

Maximum load on Z axis: 4.5kg

Resolution ability: 0.01mm/Axis Repeat positioning accuracy ±0.02mm

Program recording capacity: 1000 groups, 4000 points per group (support U disk copy) Display mode: 5.0 inch LCD color screen

Movement speed X/Y/Z(mm/sec): 0.1-800/400 Motor system: Japan imported micro stepping precision motor Movement mode: point to point, continuous line segment

Transmission system: Japanese timing belt + precision linear guide

Motion compensation function: 3axis (any route in 3D space is available) Edit mode: teaching box or computer file input

Input power: AC/220V/350W

Control mode: motion control card control + teaching programming Working environment: 5~40℃, working humidity: 20~90% Dimensions: 615*660*565mm

Whole machine weight: 75kg
